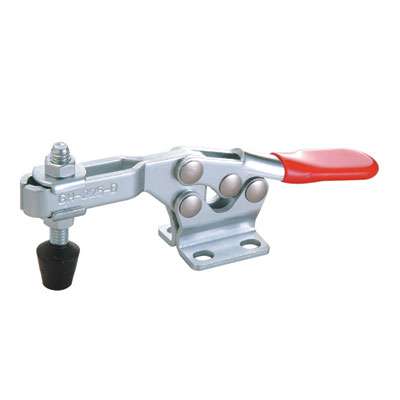

GH-225-D

Series 225-D

– Popular!
– Holding Capacity: 500 LBS. (227 kg)
– Weight: 0.59 LBS. (265 g)
– Bar opens: 90°, Handle 65°
– Spindle Supplied: GH-FC-56212

This is the most popular horizontal handle toggle clamp. See Series GH-22165 for extra long U-Bars.

Model Number Description CAD ( 3D | 2D )
GH-225-D U-Bar, Flanged Base IGS | STP | DWG
GH-225-DI U-Bar, Straight Base IGS | STP | DWG
GH-225-DSS Stainless Steel Model of GH-225-D IGS | STP | DWG
