GH-301-A
11.91 $ USD + IVA
Descripción
PUSH-PULL 100, 601
DESCRIPCIÓN
– Cross Ref.: DE-STA-CO Model 601
– Holding Capacity: 100 LBS. (45 kg)
– Weight: 0.11 LB. (50 g)
– Handle opens: 190°
– Plunger stroke: 0.63″ (15.9 mm)
– Spindle supplied: GH-SA-08034 (Nylon)

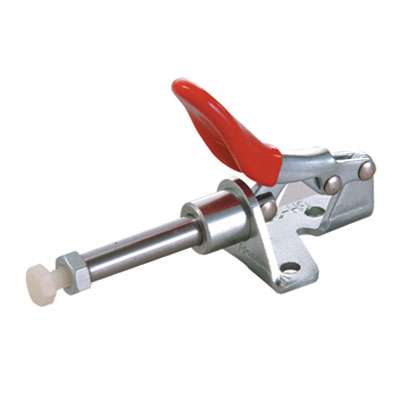

Economical, miniature push-pull clamp with long plunger stroke.

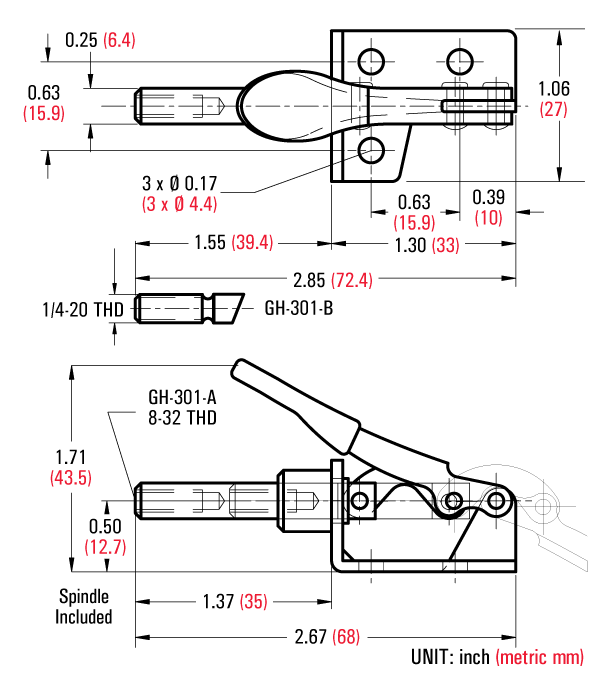

| Model Number | Holding Capacity | Spindle Supplied | Handle Opens | Plunger Stroke | Weight | DE-STA-CO | Notes | CAD(3D/2D) |
|---|---|---|---|---|---|---|---|---|
| GH-301-A | 100 lb (45 kg) | GH-SA-08034 (Nylon) | 190° | 0.63″ (15.9 mm) | 0.11 lb (50 g) | Model 601 | 8-32 Thread | IGS | DWG |
